Proguard RR Sleeve

Name: Proguard RR Sleeve
SKU: RR-SLV
Price: 176.00 USD
Availability: InStock

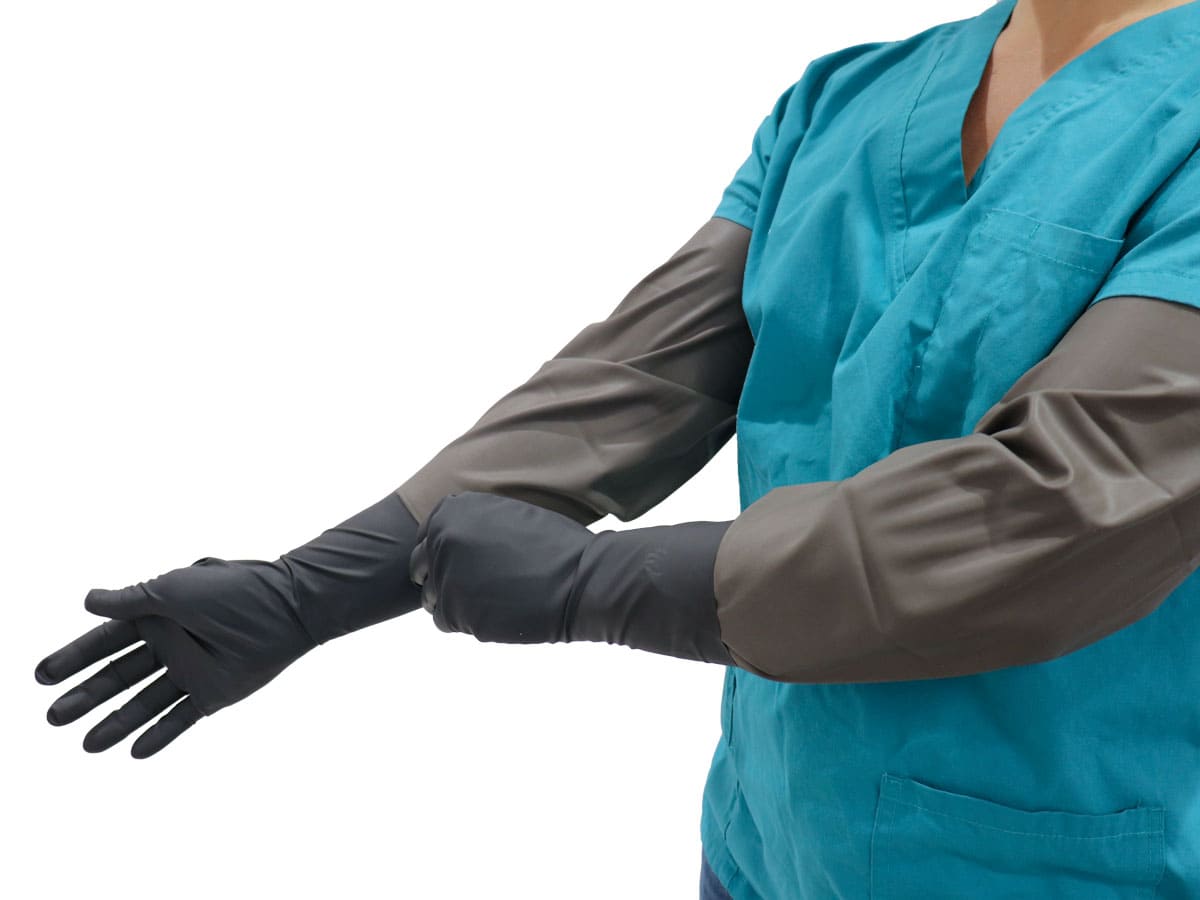

The Proguard RR radiation attenuating sleeves are intended to reduce the amount of scattered radiation exposure to the arms during fluoroscopic procedures. The RR sleeves are best used in conjunction with radiation attenuating gloves (as shown).

Certified to ASTM 2547 and IEC 61331-1:2014 Standards

Proguard sleeves are the preferred choice for doctors in the following vocations: Radiology, Cath/EP Lab, Orthopedics, Endoscopy, Urological Procedures, Special Procedures, and Pain Management.

Price is for 3 Pairs (1 box)

Tag: Radiographic Protection GlovesCategories: Lead Gloves, Radiation ProtectionSKU: RR-SLV

Sleeve Size

Clear

Product Information

Sterile

Single Use

Premium Lead

Latex Free

Powder Free

Highly Tactile

RR Sleeve Characteristics

Material: Lead Oxide (PbO) and Dry Natural Rubber
Allergens: Latex Free and Powder Free
Internal Slipcoat: Polymer Coated
Sterility: Sterilized by Ethylene Oxide

Post Processing: Polymer Rinsing
Shelf Life: 3 Years as per ASTM 7160-05
Packaging: Pouch (1 Pair); Box (3 Pairs)
Sizing: Small: 15.5″ L x 7″ W [3.75″ base; 5″ top]; Medium: 15.5″ L x 7.5″ W [4″ base; 5″ top]; Large: 15.5″ L x 8″ W [4.75″ base; 5.5″ top]

Sleeve Attenuation

MODEL	LEAD EQUIVALENCE	THICKNESS	AREA DENSITY	60kVp	90kVp	120kVp
RR-SLV	0.05mm Pb @ 60kVp	+/- 0.24mm	0.63 kg/m2	52%	40%	32%

Sleeve Compliance

Intended Use: To protect the user’s arms from scattered secondary radiation originating from the X-ray beam during fluoroscopic procedures by providing an attenuating barrier to radiation. They are not intended for use in direct or primary X-ray beams. They are also not intended to protect from abrasions, cuts, tears, punctures, and heat/fire. The RR sleeves are ideal where the user needs protection from ionizing radiation during various types of procedures such as General X-Ray & Fluoroscopy, Radiography, Neuroradiology, Urology, MRI, CT, Radiotherapy and Nuclear Medicine.
The RR Sleeve is intended to be used in conjunction with radiation attenuating gloves.

Compliance Requirements: ASTM D5151, ASTM D6124, ASTM D412, ASTM F2547, EN ISO 374-1:2016, EN ISO 374-5:2016, EN 421:2010 (excl. clause 4.3) EN 420:2003 + A1:2009
Biocompatibility Compliance: ISO 10993, ASTM F 719 and ASTM F 720

Storage, Disposal and Expiration

Storage: Store sleeves in a cool, dry and ozone-free place (below 35°C). Keep out of direct sunlight. Care should be taken to avoid sharp objects as punctures will allow radiation to pass to the wearer.

Disposal: The Proguard RR Sleeve contains lead and should be disposed of through hazardous waste procedures in accordance with local laws and regulations. The material should not be disposed of by incineration and use of self-contained breathing apparatus is recommended if the sheeting is ignited by fire.

Expiration: This is a sterilized product and expiration is set at 3 years from manufactured date per FDA requirement. his Indication may be found on the label on the original external packaging and indicates the period of time during which the device, sterilized with Ethylene Oxide, may be used as long as it has been stored properly in suitable conditions and has intact packaging.

Sleeve Resources

Instructions for Use
