EP Drape – Small

Tested in accordance with ASTM and IEC standards, ScatterGuard EP patient drapes provide excellent protection for fluoro-lab and operating suite personnel during interventional procedures. These drapes are worn by the patient, so you benefit from added protection without the added weight! They are sterile, disposable through normal waste procedures, conform to the patient’s body, and feature 3M adhesive backing to prevent slippage.

Minimum Order: 10 drapes (1 box)

$248.00

Product Information


Drape Features: Sterile

Sterile

Drape Features: Single Use

Single Use

Drape Features: Eco Friendly

Eco Friendly

Drape Features: Latex Free

Latex Free

Drape Features: 3M Adhesive

3M Adhesive

Drape Features: Weightless Protection

Weightless for Doctor


EP Drape Characteristics
  • Dimensions: 11″ x 16″
  • Fenestration: 5.75″ x 3″ Center Scoop Fenestration
  • Core Material: Prolite
  • Protection Options: 0.25mm LE
  • Shelf Life: Sterile – 3 years after manufacture date
  • Quantity: 10 drapes per box
  • Fabric: Corzorb
  • CE Marked: Yes (only applies to 0.25mm LE)
  • Certifications: Certified to ASTM F3094-14 and IEC 61331-1:2014 standards.
  • For Use During: Bi-ventricular pacemaker implants, ICS procedures and bi-ventricular pacing

Drape Attenuation
LEAD EQUIVALENCE ATTENUATION @ 80kV ATTENUATION @ 100kV
0.125mm 77.3% 68.9%
0.250mm 91.9% 85.6%
0.375mm 96.4% 92.1%
0.50mm 98.3% 95.4%

Drape Compliance

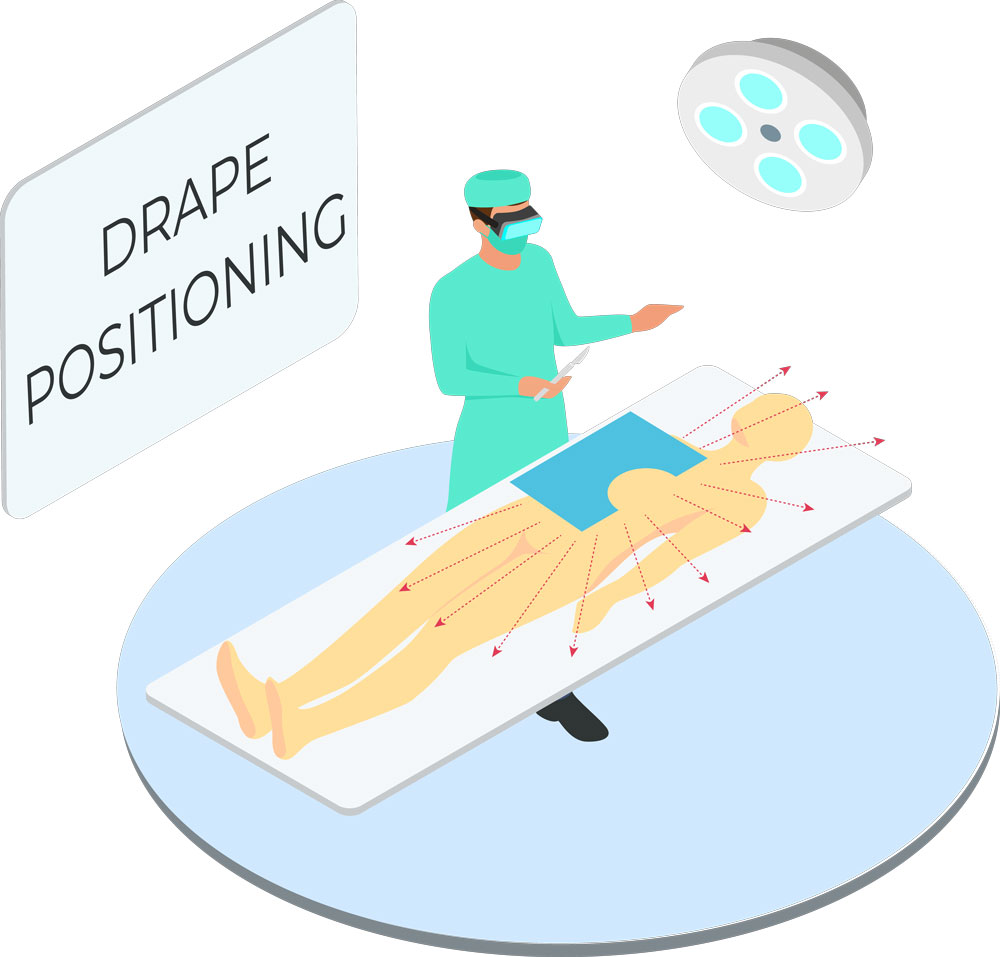

Intended Use: Scatterguard EP Drapes are intended to be placed on a patient during fluoroscopic procedures and designed to provide excellent radiation protection for fluoro-lab and operating suite personnel during interventional procedures. Patient Drapes, when properly positioned, create a “shadow” or protective area where radiation is blocked or reduced. Scatterguard Drapes are lightweight, lead-free, latex-free, and disposable. These drapes are ideal where the user needs protection from ionizing radiation during various types of procedures such as General X-Ray & Fluoroscopy, Radiography, Neuroradiology, Urology, MRI, CT, Radiotherapy and Nuclear Medicine.

Compliance Requirements: ASTMF 2547-18; IEC 61331-1:2014
Biocompatibility Compliance: ISO 10993, ASTM F 719 and ASTM F 720


Storage, Disposal and Expiration
Storage: Store drapes in a cool, dry and ozone-free place (below 35°C). Keep out of direct sunlight. Drapes should remain in their original packaging until use. Care should be taken to avoid sharp objects as punctures will allow radiation to pass.

Disposal: Scatterguard Drapes should be disposed of through normal waste procedures in accordance with local laws and regulations. The material should not be disposed of by incineration and use of self-contained breathing apparatus is recommended if the sheeting is ignited by fire.

Expiration: This is a sterilized product and expiration is set at 3 years from manufactured date per FDA requirement. This indication may be found on the label on the original external packaging and indicates the period of time during which the device, sterilized with Gamma Radiation, may be used as long as it has been stored properly in suitable conditions and has intact packaging.
