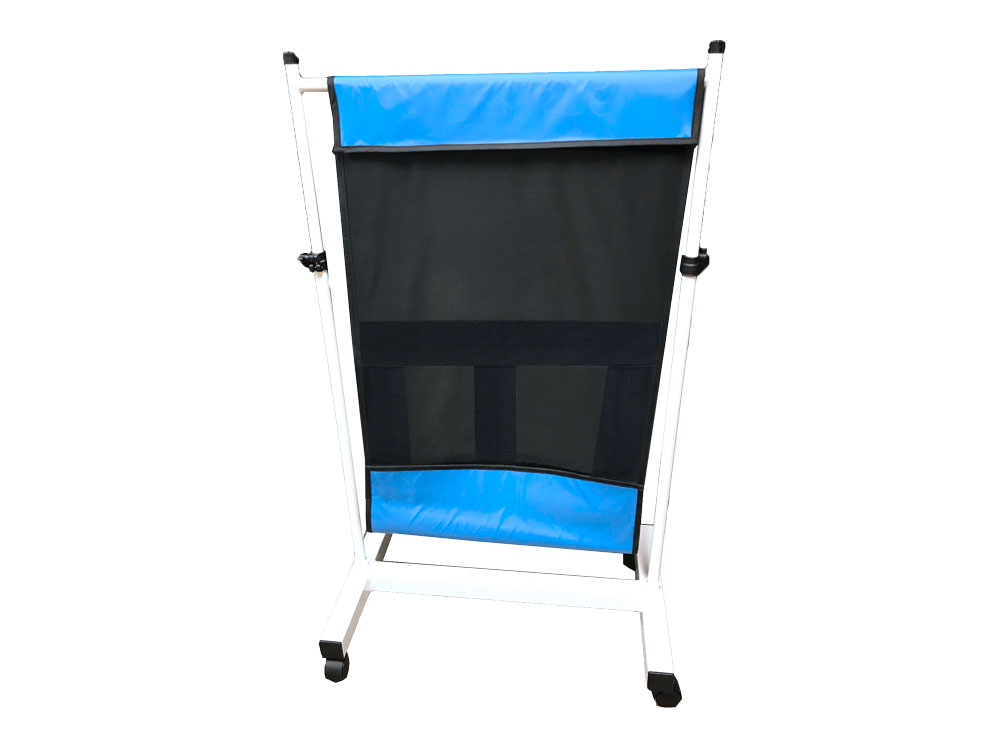

Adjustable Mobile Barrier
Our adjustable mobile radiation barrier provides maximum shielding from x-ray exposure. Ideal for patient & personnel radiation protection, the adjustable barrier is easy to maneuver and much lighter than acrylic barriers. This mobile barrier is constructed with high quality, USA-made steel and durable wheel casters.
Adjustable Barriers are made standard with Lead Core Material at 0.50mm LE thickness.
For custom sizing, core material, or thickness please contact us.
Product Information
Features
- Removable Shield attached via Velcro for easy cleaning and adjustability
- Adjustable shield and steel base
- Durable steel base and lockable casters ensure stability
- Some assembly required
Made in the USA
Mobile Protection
Not CE Certified
- Composition (Shield): Standard Lead
- Composition (Base): Steel
- Protection (Shield): 0.50mm LE
- CE Certified: No
- Dimensions (Shield): 24-48″ H x 24″ W
- Dimensions (Full – Min): 34″ H x 24″ W x 28″ D
- Dimensions (Full – Max): 60″ H x 24″ W x 28″ D
- Weight: 50 lbs
| CORE MATERIAL | LEAD EQUIVALENCE | 70kVp | 90kVp | 110kVp | 130kVp |
|---|---|---|---|---|---|
| Standard Lead | 0.50mm LE | 98.8% | 95.7% | 94.1% | 93.1% |
Intended Use: Lead Barriers are used by healthcare professionals as a mobile solution to protect them from the harmful effects of x-ray radiation during medical & other procedures requiring the use of x-ray/fluoroscopy. Barriers are usually used in combination with other radiation safety products (such as lead garments) to provide complete protection from x-ray.
EN 61331-1:2014: (EU) Protective devices against diagnostic Medical X-ray radiation. (Determination of attenuation properties of material)
EN 61331-3:2014: (EU) Protective devices against diagnostic medical X-radiation Part 3: Protective clothing, Eyewear and Protective Patient shields.
ASTM 2547-18: (USA) Standard test method for determining the attenuation properties in a primary x-ray beam of materials used against radiation.
Maintenance: Barrier fabrics can be cleaned by hand using mild soap diluted with room temperature water. Clorox hydrogen peroxide in diluted form is permissible. PDI Sani-Cloth® AF3 Germicidal Disposable Wipes are approved for use on Protech aprons.
Disposal: Users must dispose of the Lead Barrier by complying with local, state and federal (or international) regulations where applicable.
Warranty: Protech’s Leaded Barriers are warranted to be free of defects in materials and workmanship to the original purchaser for one year. If a defect appears, please contact us or an authorized reseller to begin the RMA process.
The warranty is void when the product has been tampered with, when repairs or attempted repairs have been made by unauthorized persons, or when the item has been subject to misuse, abuse or damage in transit. For more information on Returns, Repairs and Warranty, please visit our Returns and Repairs page.
Instructions for Use
Core Material Options
Fabric Color Options
Test Reports
