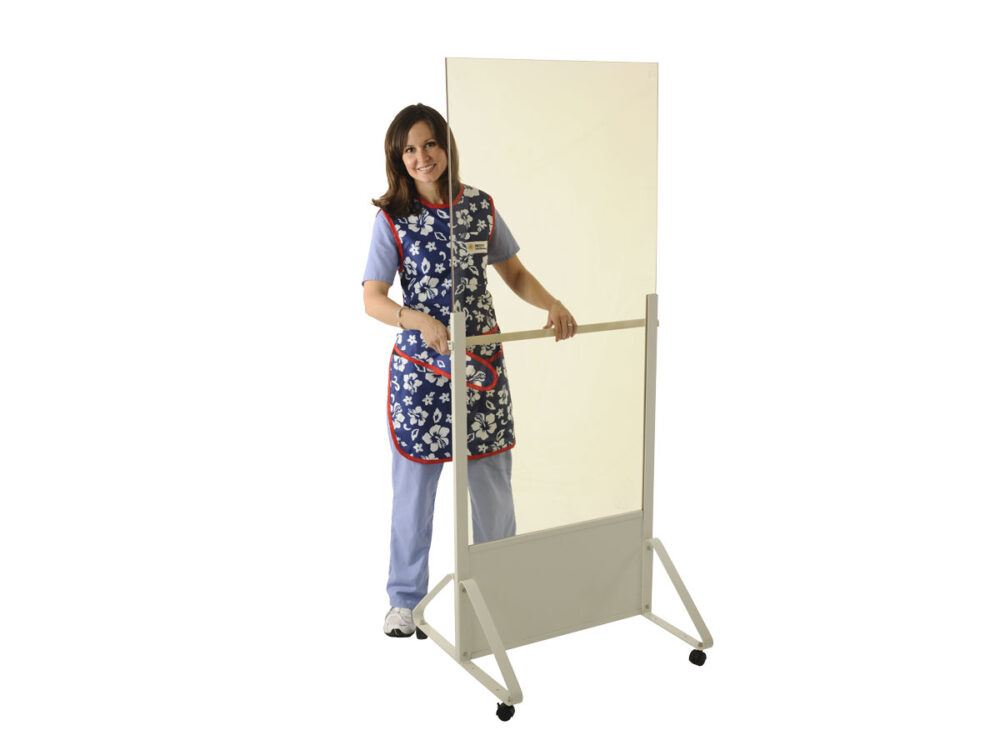

Full Glass Mobile Barrier

For personnel in the examination room that need the highest radiation protection, the full glass mobile barrier provides the ultimate, total-body radiation protection during extended procedures. The larger, lead glass window provides unparalleled 2.00mm LE protection and rests on an opaque lower panel with an equivalent 0.50mm LE.

$6,025.00

Product Information


Features

  • 2.00mm LE Glass Window provides superior protection
  • Smooth rolling and lockable casters provide great mobility
  • Lead Glass and Aluminum/Steel base are made in the USA
  • Some assembly required
Barrier Features: Made in the USA

Made in the USA

Barrier Features: Mobility

Mobile Protection

Barrier Features: No CE certification

Not CE Certified


Full Glass Mobile Barrier Characteristics
  • Composition (Window): Lead Oxide infused glass
  • Composition (Base): Lead Oxide Sheeting, Aluminum, Steel
  • Protection (Window): 2.00mm LE
  • Protection (Base): 0.50mm LE
  • CE Certified: No
  • Dimensions (Window): 55″ H x 28″ W
  • Dimensions (Full): 72″ H x 28″ W x 24″ D
  • Weight: 115 lbs

Barrier Attenuation
MATERIAL LEAD EQUIVALENCE 70kVp 90kVp 110kVp 150kVp
Lead Glass Shield 2.00mm LE 99.99% 99.9% 99.6% 99.2%

Compliance Standards

Intended Use: Lead Barriers are used by healthcare professionals as a mobile solution to protect them from the harmful effects of x-ray radiation during medical & other procedures requiring the use of x-ray/fluoroscopy. Barriers are usually used in combination with other radiation safety products (such as lead garments) to provide complete protection from x-ray.

EN 61331-1:2014: (EU) Protective devices against diagnostic Medical X-ray radiation. (Determination of attenuation properties of material)
EN 61331-3:2014: (EU) Protective devices against diagnostic medical X-radiation Part 3: Protective clothing, Eyewear and Protective Patient shields.
ASTM 2547-18: (USA) Standard test method for determining the attenuation properties in a primary x-ray beam of materials used against radiation.


Maintaining Your Lead Barrier
Storage: When not in use, the mobile barrier should be stored in area free of loose objects that may fall and damage it. Casters should be locked to prevent unintentional movement. Keep mobile barrier out of direct sunlight, high humidity and prolonged exposure to extreme heat. Store at 70-80°F (21-27°C).

Maintenance: Examine barrier before use. If the lead glass window or base becomes pitted, chipped or damaged cease use immediately. Basic cleaning maintenance is required to ensure glass is clear and keep casters free of debris.

Cleaning Leaded Barrier Frame: Barrier frame may be cleaned with any non-Ammonia based or non-chlorine based cleaner. Any neutral based disinfecting product may be used for disinfecting if necessary. Never use Ammonia, Bleach or other Acid or Alkali based cleaners

Cleaning Leaded Glass Window: Never use ammonia or chlorine-based cleaners. Window is made with high lead oxide content glass; the surface is susceptible to scratches and attack by acids and alkalis. Use only water, non-abrasive cleaning agents and always wipe dry with a soft cloth. DO NOT allow water to remain or dry as this can discolor/damage the glass.

Disposal: This barrier contains lead in both the upper and lower panels. Users must dispose of Barriers and accessories by complying with local, state and federal (or international) regulations where applicable.

Warranty: Protech’s Leaded Barriers are warranted to be free of defects in materials and workmanship to the original purchaser for one year. If a defect appears, please contact us or an authorized reseller to begin the RMA process.

The warranty is void when the product has been tampered with, when repairs or attempted repairs have been made by unauthorized persons, or when the item has been subject to misuse, abuse or damage in transit. For more information on Returns, Repairs and Warranty, please visit our Returns and Repairs page.
