Double-Sided Table Drape

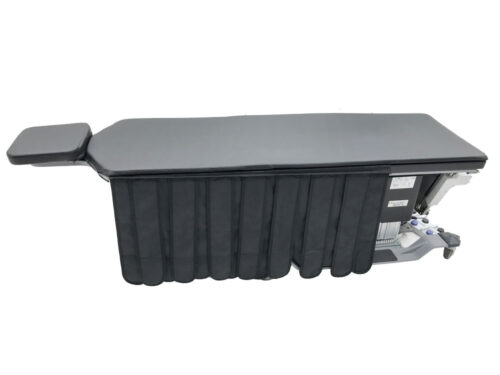

Table drapes provide protection against scatter radiation for your lower body and are specially designed to not obstruct positioning of the C-arm. The double sided drape features a saddlebag design (no velcro) for a secure fit to a standard 22″ imaging table. The saddle portion of the table drape does not contain lead and is intended to go underneath a table pad (shown in image). Each drape panel is 6″ wide.
Table drapes are made standard with Lead Core Material at 0.50mm LE thickness.
For custom sizing, core material, or thickness please contact us.
Product Information
Features
- Multi-panel design allows for easy maneuverability around imaging table
- Saddle-bag design keeps drape evenly positioned
- Also available as a Single-Sided Table Drape
Made in the USA
Fully Customizable
Not CE Certified
- Barrier Type: Stationary – lower body protection
- Protection (thickness): 0.50mm LE
- Core Material: Standard Lead
- CE Certified: No
- Fabric Options: Nylons and Ripstop
- Customization Options: Limited Online, Contact us for more options
| CORE MATERIAL | LEAD EQUIVALENCE | 70kVp | 90kVp | 110kVp | 130kVp |
|---|---|---|---|---|---|
| Standard Lead | 0.50mm LE | 98.8% | 95.7% | 94.1% | 93.1% |
Intended Use: Lead Barriers are used by healthcare professionals as a solution to protect them from the harmful effects of x-ray radiation during medical & other procedures requiring the use of x-ray/fluoroscopy. Barriers are usually used in combination with other radiation safety products (such as lead garments) to provide complete protection from x-ray.
EN 61331-1:2014: (EU) Protective devices against diagnostic Medical X-ray radiation. (Determination of attenuation properties of material)
EN 61331-3:2014: (EU) Protective devices against diagnostic medical X-radiation Part 3: Protective clothing, Eyewear and Protective Patient shields.
ASTM 2547-18: (USA) Standard test method for determining the attenuation properties in a primary x-ray beam of materials used against radiation.
Maintenance: Table Drape fabrics can be cleaned by hand using mild soap diluted with room temperature water. Clorox hydrogen peroxide in diluted form is permissible. PDI Sani-Cloth® AF3 Germicidal Disposable Wipes are approved for use on Protech aprons.
Disposal: Users must dispose of Table Drapes by complying with local, state and federal (or international) regulations where applicable.
Warranty: Protech’s Lead Table Drapes are warranted to be free of defects in materials and workmanship to the original purchaser for one year. If a defect appears, please contact us or an authorized reseller to begin the RMA process. You can also go directly to our Return Merchandise Form and begin the return process.
The warranty is void when the product has been tampered with, when repairs or attempted repairs have been made by unauthorized persons, or when the item has been subject to misuse, abuse or damage in transit. For more information on Returns, Repairs and Warranty, please visit our Shipping, Warranty and Returns page.
